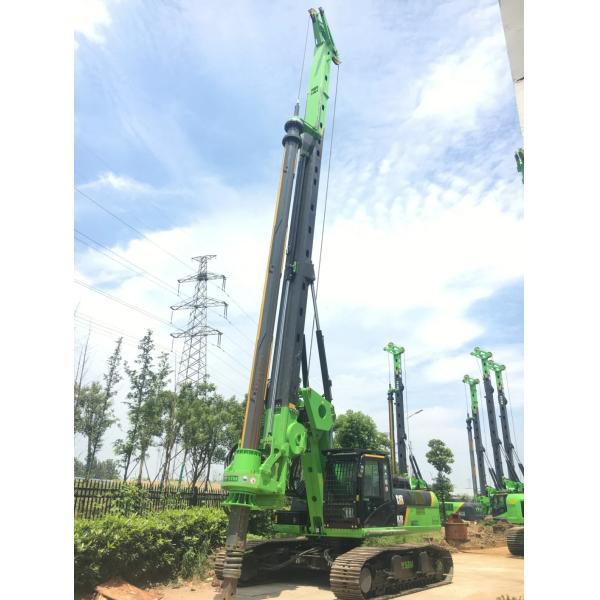

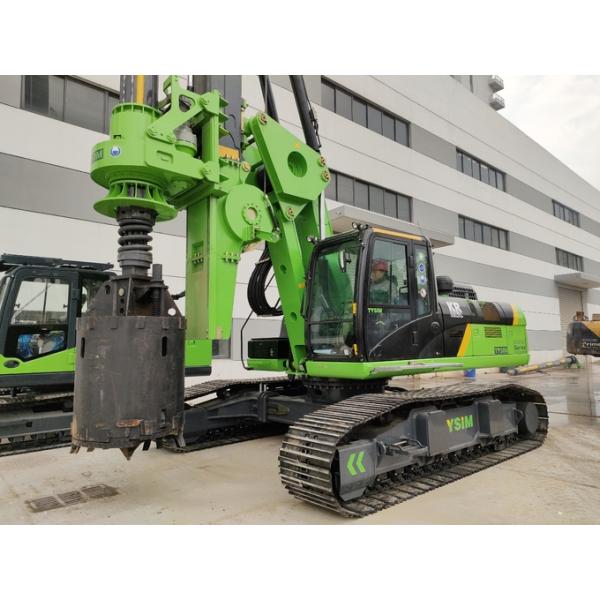

High Efficient Earth Drilling Equipment Auger Drill Pipe Operating Width 4100mm piling

  • 1
  • 2
  • 3

Brand Name : TYSIM

Model Number : KR165C

Certification : CE,ISO9001

Place of Origin : Jiangsu, China

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 5 set per month

Delivery Time : 30 working days after receiving the advance payment

Packaging Details : Method One: Nude packing and overall transport by sea with roll-on-roll-off ship.

Max. torque : 165 KN.m

Max. drilling diameter : 1500 mm

Max. drilling depth : 46 m

Speed of rotation : 7~28 rpm

Max. crowd pressure : 155 kN

Main winch line speed : 80m/min

Stroke(crowd system) : 4200mm

Operating height : 19152 mm

Operating width : 4100mm

Overall weight : 49 t

Auxiliary winch line speed : 70m/min

Mast inclination(lateral) : ±3°

Max. operating pressure : 35 MPa

Pilot pressure : 4 MPa

Contact Now

Technical Specificatio

Type KR165C
Torque 165 KN.m
Max. diameter 1500 mm
Max. drilling depth 46 m
Speed of rotation 7~28 rpm
Max. crowd pressure 155 kN
Max. crowd pull 160 kN
Main winch line pull 160 kN
Main winch line speed 80m/min
Auxiliary winch line pull 60 kN
Auxiliary winch line speed 70m/min
Stroke(crowd system) 4200mm
Mast inclination(lateral) ±3°
Mast inclination(forward)
Max. operating pressure 35 MPa
Pilot pressure 4 MPa
Track shoe width 700 mm
Operating height 19152 mm
Operating width 4100mm
Transport height 3321 mm
Transport width 3100 mm
Overall weight 49 t

High Efficient Earth Drilling Equipment Auger Drill Pipe Operating Width 4100mm piling
High Efficient Earth Drilling Equipment Auger Drill Pipe Operating Width 4100mm piling

1. Undercarriage-----Reliable & Mature Excavator Supplier for Choice

Type: New & Used

Brand: CAT, JCM, SINOMACH, SANY, XCMG and other

2. Hydraulic Parts-----World Famous Brands

Gearbox Reducer: Imported REXROTH

Main Pump & Valve: Imported KAWASAKI (Japan)

Hose: Imported

3. Structure Parts-----Professional Structure Parts Supplier for XCMG

High Efficient Earth Drilling Equipment Auger Drill Pipe Operating Width 4100mm piling

High Efficient Earth Drilling Equipment Auger Drill Pipe Operating Width 4100mm piling

High Efficient Earth Drilling Equipment Auger Drill Pipe Operating Width 4100mm piling

Certificates
High Efficient Earth Drilling Equipment Auger Drill Pipe Operating Width 4100mm piling
High Efficient Earth Drilling Equipment Auger Drill Pipe Operating Width 4100mm piling
High Efficient Earth Drilling Equipment Auger Drill Pipe Operating Width 4100mm piling

Our Services
Why Choose Us?
1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.
3. Our rotary drilling rigs have been sold to more than 20 countries, such as Russia, Australia, Thailand, Zambia and others.
4. Competitive price.

FAQ
Q1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is one year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
Q2: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
