Brand Name : TYSIM
Model Number : KR165C
Certification : CE,ISO9001
Place of Origin : Jiangsu, China
MOQ : 1 set
Price : Negotiation
Payment Terms : L/C, T/T
Supply Ability : 5 set per month
Delivery Time : 30 working days after receiving the advance payment

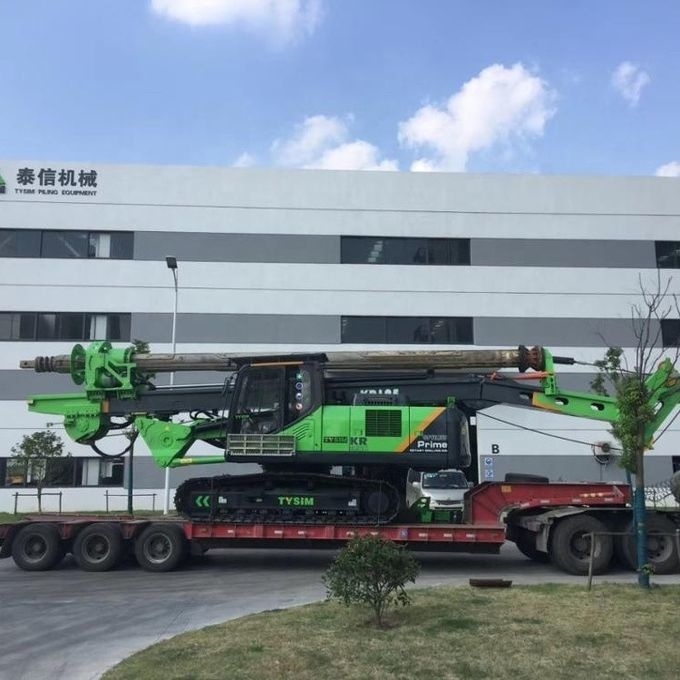

Packaging Details : Method One: Nude packing and overall transport by sea with roll-on-roll-off ship.
Max. torque : 165 KN.M
Max. drilling diameter : 1500 mm
Max. drilling depth : 58/46m
Speed of rotation : 7~28 rpm
Max. crowd pressure : 155 KN
Main winch line speed : 80 m/min
Stroke(crowd system) : 4200 mm
Operating height : 19152 mm
Operating width : 4100 mm
Overall weight : 49 t
Engine model : CAT C7.1 159KW
Rated power : 159/1800rpm
Displacement : 7.01L
Technical Specificatio
Type | KR165C |
Torque | 165 KN.m |
Max. diameter | 1500 mm |
Max. drilling depth | 46 m |
Speed of rotation | 7~28 rpm |
Max. crowd pressure | 155 kN |
Max. crowd pull | 160 kN |
Main winch line pull | 160 kN |
Main winch line speed | 80m/min |
Auxiliary winch line pull | 60 kN |
Auxiliary winch line speed | 70m/min |
Stroke(crowd system) | 4200mm |
Mast inclination(lateral) | ±3° |
Mast inclination(forward) | 5° |
Max. operating pressure | 35 MPa |
Pilot pressure | 4 MPa |
Track shoe width | 700 mm |
Operating height | 19152 mm |
Operating width | 4100mm |
Transport height | 3321 mm |
Transport width | 3100 mm |
Overall weight | 49 t |
1. Undercarriage-----Reliable & Mature Excavator Supplier for Choice
Type: New & Used
Brand: CAT, JCM, SINOMACH, and other
2. Hydraulic Parts-----World Famous Brands
Gearbox Reducer: Imported REXROTH
Main Pump & Valve: Imported KAWASAKI (Japan)
Hose: Imported
3. Structure Parts-----Professional Structure Parts Supplier for XCMG
Our Services
Why Choose Us?
1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.
3. Our rotary drilling rigs have been sold to more than 20 countries, such as Russia, Australia, Thailand, Zambia and others.
4. Competitive price.
FAQ
Q1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is one year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
Q2: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
